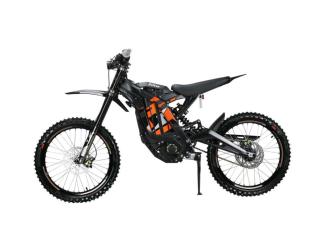

05042024 1550 Sur Ron BLK 01

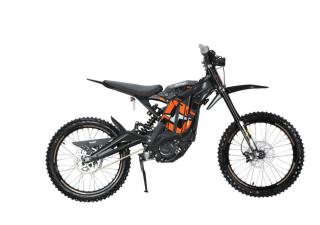

05042024 1550 Sur Ron BLK 02

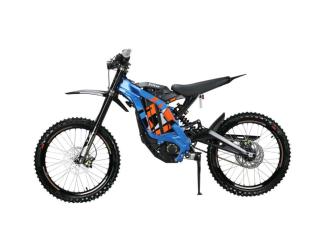

05042024 1550 Sur Ron BLU 01
05042024 1550 Sur Ron BLU 02

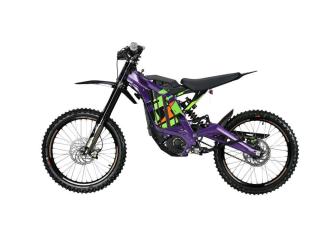

05042024 1550 Sur Ron PUR 01

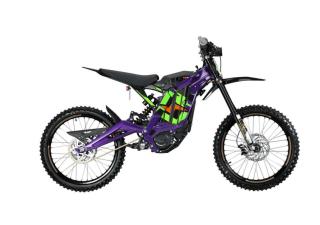

05042024 1550 Sur Ron PUR 02
20 07 23 1003 Sur Ron Logo 01

LIGHT BEE X

£3,999
Enquire now

Interested in this bike? Call us 01539 732666

Bike Model
Light Bee X
CC
50
Colour
BLACK / BLUE / PURPLE

Maximum rotate speed 5400 rpm. Protection level IP55.

Specifications

Chassis
Chassis & Swingarm:
Forged Aluminum
Chassis Surface & Colour Processing:
Anodic Oxidation
Front Suspension:
KKE or DNM, Adjustable for Preload & Rebound
Rear Shock Absorber:
KKE or DNM Shock with TR Suspension Link System, Adjustable for Compression & Rebound
Wheel Type & Size:
19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs
Tire Size:
70/100-19 Front/Rear
Max Range:
100km @ 32km/h depending upon terrain
Net Weight:
47kg (Plus Battery
Max Load:
100kg (220 lbs.)
Max Climbing Angle:
45 degrees
Rear Sprocket:
48T
Side Stand:
With Kill Switch
Vehicle Dimensions:
1,870mm x 780mm x 1,040mm
Minimum Ground Clearance:
270mm
Wheelbase:
1,260mm
Seat Height:
84-88cm
Engine
Motor Type:
PMSM
Weight / Motor External Diameter:
7.0kg / 180mm
Motor Axial Length:
130mm
Peak Efficiency:
95.60%
Cooling Method:
Air-Cooled
Controller Type:
X Version Sine Wave
Dimensions:
240mm x 110mm x 50mm
Peak Efficiency:
98.50%
Power Modes:
Eco and Sport
Rated Voltage:
60V (DC)
Rated Power / Peak Power:
3,000W / 6,000W
Motor Shaft Output Torque @ 1000RPM:
35.40Nm
Rated Rotation Speed:
4300rpm
Peak Efficiency:
97.8%
Range of Efficiency (≥80):
1.4Nm – 21.5Nm
Gear Ratio:
1:7.6
Transmission:
Primary Belt & 420 Drive Chain
Battery:
60V 40Ah Lithium Battery with 176 Panasonic Cells
Battery Life:
500 Cycles (reduces thereafter)
Battery Charge Indicator:
Integrated LCD Display
Charger:
10A
Charging Time:
2.5-3.5 Hours
USB Connection:
Single USB-2.1 A Socket
Speedometer:
LCD Digital Speedometer
Headlight & Rear Light:
LED
Further Information


HIGH PERFORMANCE.

VISUAL PERFECTION.

HIGH PERFORMANCE MOTOR

Maximum rotate speed 5400 rpm. Protection level IP55.

FOC SINE WAVE CONTROLLER

Multi-Curve Compound Algorithms. Full encapsulation structure.

HIGH-POWER BATTERY PACK

High rate 18650 cell. Safe and reliable.


REDESIGNED SUSPENSION

The 200mm effective travel can easily cope with big jumps. The triple rate coil spring gives much better fork stability, which works perfectly on both trail and track conditions.


ANY TERRAIN.

ANY TIME.

Sur-ron bikes are constantly being tested and improved upon, both by professional riders and by our tech team. We have developed a multi-link rear suspension system for our light bee models, meaning, whether you are shredding through a city or hitting up the track, your new bike will adapt to any terrain. Big Fun. Anywhere.

POWER READY

The EIC system is built developed and tested by Sur-Ron in their state-of-the-art head quarters using only the best available tech and materials. Sine wave controller deliver smoother power, more torque and ReGen for improved range.


COMPLETE VERSATILITY

In the sports mode, the strong power output up to 5KW and the instantaneous erupted on-wheel torque with 250N.m, makes you easy to handle skills like jumping and wheelies.

PERFECT POWER COMBINATION

60V and more than 6kW of peak power from a removable Panasonic Lithium ion battery pack. Forged light weight alloy frame combined with hi-spec components, total weight just 47kg. 4 Piston Hydraulic Disc Brakes Front and Rear. LCD dash with USB charger point. Aimed at youth to adult, with a climbing ability of over 45° it offers hours of near silent fun with a range of 20 to 60 miles per charge, depending on mode. Top speed 45 mph +, Fast Re Charge 2.5 to 3.5 hours.
